SMB
Connecting SMB on-prem and Azure SMB File Shares to LightBeam
Overview
LightBeam Spectra users can connect various data sources to the LightBeam application and these data sources will be continuously monitored for PII, PHI data. Azure File Shares can be connected to LightBeam using SMB protocol. To learn more, see Appendix.
Example: SMB, MySQL, PostgreSQL, etc.
Connecting SMB Data Source
Login to your LightBeam Instance.
Click on DATASOURCES on the Top Navigation Bar.
Click on “Add a data source”.
Search for “SMB”.
Click on SMB Server.
Fill in the requested information and click on Next.
Basic Information
Data Source Name: This is the unique name given to the data source.
Description: This is an optional field needed to describe the use of this data source.
Primary Owner: An email address of who is responsible for this data source and in case of alerts this email ID will get alerts by default.
Entity Creation: LightBeam Spectra detects and associates attributes based on the context and identifies whose data it is; these are called as entities. Example: Jane Doe is an entity for whom LightBeam Spectra might have detected Name and SSN in a monitored data source.
Location: The location of the data source is indicated here.
Purpose: The purpose of why the data is being collected/processed.
Stage: The stage of the data source. Example: Source, Processing, Archival, etc.
Datasource Configuration
Provide the credentials as shown below
.
User Name: Provide the SMB share domain or local username.
Password: Provide the password for the user.
Domain: Provide the domain for the User Name if any.
URL: Provide the IP address of the file server.
Enter the SMB share names in Input Share and click on “Add” .
(Note: Please ensure netlogon service is running on the SMB sever using command net start netlogon )
Verify that you get the message “Validation Success” on the screen.
Click on Save.
Now we are ready to connect to the test database and proceed.
Scanning specific directory
Scanning specific sub directory within SMB share
Use the following syntax to scan a sub directory from SMB share.
Example share name is C and path containing the files to scan is /Data/Sample PII data use the following syntax
Azure File Share Integration
Azure File Shares can be connected to LightBeam using SMB protocol. This section details the specific steps for Azure implementations.
The Azure portal provides a PowerShell script that you can use to mount your file share directly to a host using the storage account key. Unless you're mounting the file share using identity-based authentication, we recommend using this provided script.
Azure-Specific Prerequisites
Azure storage account
Azure file share
Appropriate Azure permissions
Connection Process for Azure File Shares
1. Obtain Connection Information
Sign in to the Azure portal.
Navigate to the storage account that contains the file share you'd like to mount.

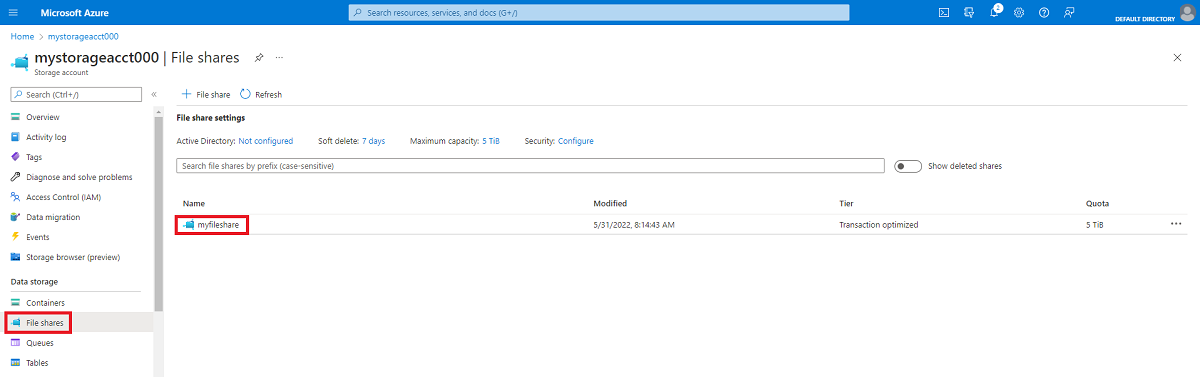

Select File shares.
Select the file share you'd like to mount.
Select Connect.
Select the drive letter to mount the share to.
2. Configuration Details
From the script use following details for LightBeam SMB datasource configuration:
username=<storage-account-name>
password=<storage-account-key>
domain=N/A
URL=<storage-account-name>.file.core.windows.net/<share-name>Copy over the script in notepad locally to preserve the credentials.
3. Additional Considerations
Save the PowerShell script locally for future reference
Keep storage account credentials secure
Consider using identity-based authentication for enhanced security
